LC LED-N425TRY2D: 4.2mm Red & Yellow LED (145 Degree)

LC LED 4.2mm Diffused Red and Yellow LED 145 Degree (Cathode)

PRODUCT DESCRIPTION



(1) RoHS Compliant Part

(4) Moisture & UV Resistance Epoxy Len

(2) Super Bright Bi-Color 5mm Red & Yellow LED

(5) Sun Light Viewable LED Lamp

(3) Excellent color mixing characteristics

(6) Rugged design suitable for both indoor & outdoor use





Absolute Maximum Rating (Ta = 250C)

PARAMETER

MAXIMUM RATING

UNITS

DC Forward Current (1)

45

mA

Peak Pulse Forward Current (1)

125

mA

Avg. Forward Current

30

mA

Operating Temperature

-40 to +100

0C

Storage Temperature

-40 to +100

0C

Lead Soldering Temperature

2600C for 3 seconds
(4.0mm or 0.157 inch from Body)

(1)     Pulse width of 1/10 duty and 0.1msec width, for long operating life, max. of 20mA recommended





Electro-optical Characteristics (Ta = 250C)

PARAMETER

SYMBOL

CONDITIONS

MIN.

TYP.

MAX.

UNIT

Forward Voltage (Red)

VF

IF = 25mA

1.7



2.1

V

Forward Voltage (Yellow)

VF

IF = 25mA

1.8



2.3

V

Reverse Voltage

VR

IR = 100mA





5

V

Dominant Wavelength (Red)

lD

IF = 25mA

625



635

nm

Dominant Wavelength (Yellow)

lD

IF = 25mA

590



595

nm

Viewing Angle

2q1/2

IF = 25mA



145



Deg.

Luminous Intensity (Red)

IV

IF = 25mA

2,000



4,500

mcd

Luminous Intensity (Yellow)

IV

IF = 25mA

2,000



4,000

mcd

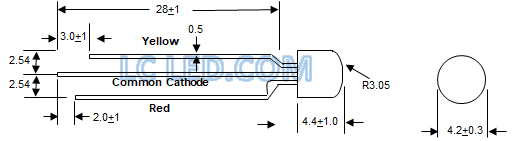

DEVICE DRAWING



Diagram, schematic

Description automatically generated
